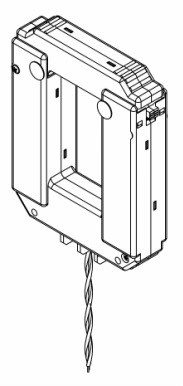

WC5 SERIES

  FEATURES

· 2.0” x 3.5” [50.8mm x 88.9mm] window opening (ID)
· Double secured latches per side

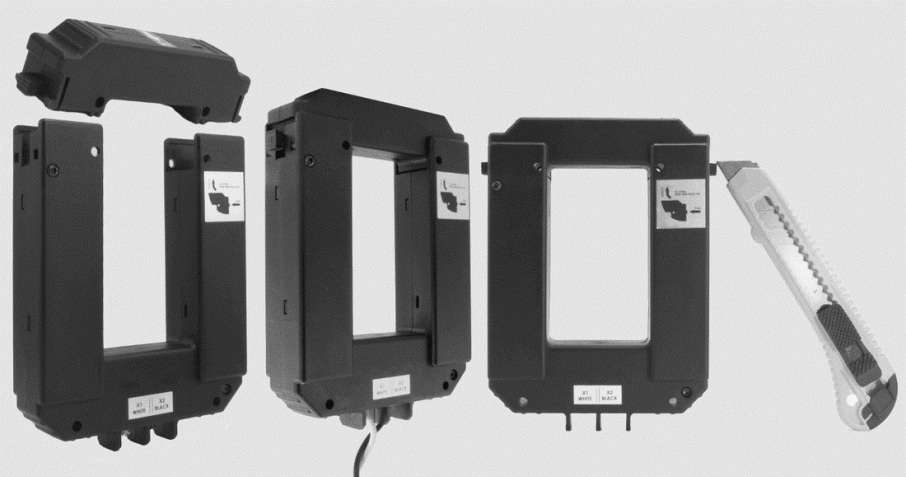

· Accessible opening from either sides for ergonomics
· Rigid housing case with UL 94V-0 plastic
· 6ft [1.83m] 16AWG black/white twisted pair wire leads
· Wire leads—UL1015 105ºC 600V
· Keying hole for locking or servicing tag
· Phoenix style and other connectors (optional)

 SPECIFICATIONS

· Standard Input Current  300-1000A
· Frequency  40Hz — 400Hz
· Custom Turn-Ratios available
· Standard Accuracy 0.5%
· Approximate weight 1.85Lbs [0.84Kg]
· ANSI C57.13, IEC61010-1 & cETLus
· UL2808 and CSA C22.2 61010-1-12
· Listed Component and CE Mark

 STANDARD MODELS

· WC5-600-MV333       (600A/0.333V)
· WC5-800-MV333       (800A/0.333V)
· WC5-1000-MV333     (1000A/0.333V)
· WC5-600-RA005       (600:5A)
· WC5-800-RA005       (800:5A)
· WC5-1000-RA005     (1000:5A)

  CUSTOM OUTPUT MODELS

· 100mA, 1A, 1V, 2V and others

  DIMENSIONS [mm]

Accessory - Plastic Rivets
