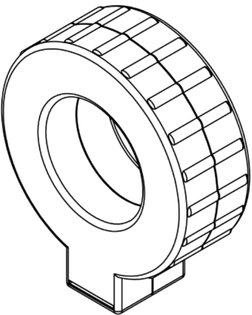

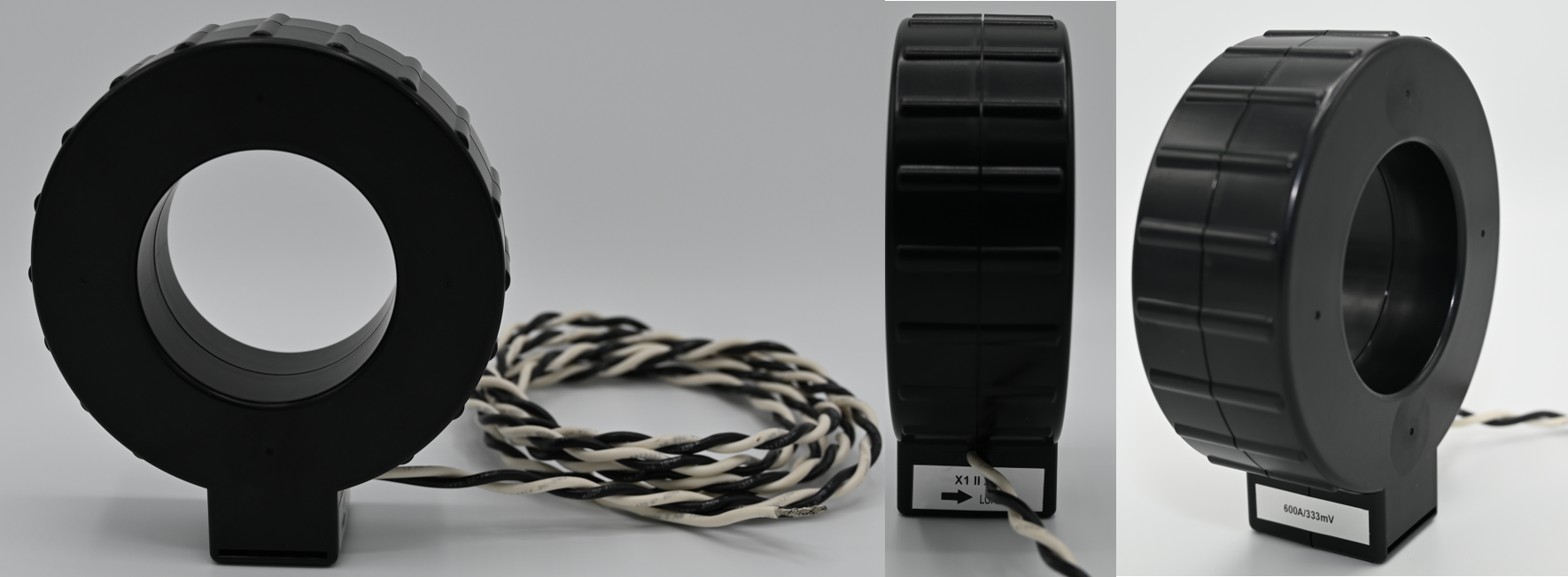

WCS250 SERIES

  FEATURES

· Ø2.5” [Ø63.5mm] window opening (ID)
· Slot provision for mounting CT
· Ultrasonically sealed housing preventing dust ingestion
· Rigid housing case with UL 94V-0 plastic
· 6ft [1.8m] 18/16AWG black/white twisted pair wires
· Lozenges on housing to provide glove-friendly grip
· Phoenix style and other connectors (optional)

 SPECIFICATIONS

· Std Input Current  400-1200A
· Frequency  40Hz — 400Hz
· Custom Turn-Ratios available
· Standard Accuracy 0.2%
· Approx weight 2.85Lbs [1.29Kg]
· UL2808 & CSA C22.2 61010-1-12
· ANSI C57.13, IEC61010-1
· Listed Component and CE Mark

 STANDARD MODELS

· WCS250-600-MV333          (600A/0.333V)
· WCS250-800-MV333          (800A/0.333V)
· WCS250-1200-MV333        (1200A/0.333V)
· WCS250-600-RA5               (600/5A)
· WCS250-800-RA5               (800/5A)
· WCS250-1200-RA5             (1200/5A)

  CUSTOM OUTPUT MODELS

· 100mA, 1V, 2V and others
· 100mA, 1V, 2V and others

  DIMENSIONS [mm]
