WC6 SERIES

  FEATURES

· 2.0” x 5.5” [50.8mm x 139.7mm] window opening (ID)
· Double secured latches per side

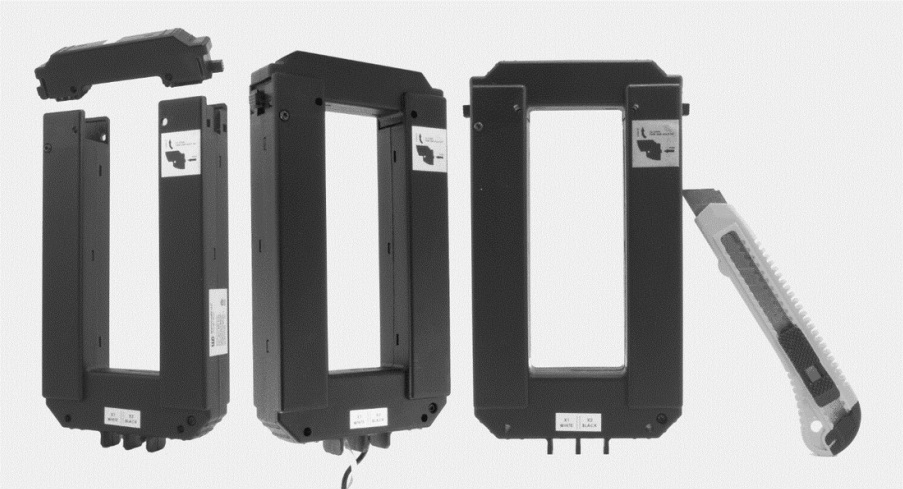

· Accessible opening from either sides for ergonomics
· Rigid housing case with UL 94V-0 plastic
· 6ft [1.83m] 16AWG black/white twisted pair wire leads
· Wire leads—UL1015 105ºC 600V
· Keying hole for locking or servicing tag
· Phoenix style and other connectors (optional)

 SPECIFICATIONS

· Standard Input Current  400-2000A
· Frequency  40Hz — 400Hz
· Custom Turn-Ratios available
· Standard Accuracy 0.5%
· Approximate weight 2.5Lbs [1.1Kg]
· ANSI C57.13, IEC61010-1 & cETLus
· UL2808 and CSA C22.2 61010-1-12
· Listed Component and CE Mark

 STANDARD MODELS

· WC6-1200-MV333       (1200A/0.333V)
· WC6-1600-MV333       (1600A/0.333V)
· WC6-2000-MV333       (2000A/0.333V)
· WC6-1200-RA005       (1200:5A)
· WC6-1600-RA005       (1600:5A)
· WC6-2000-RA005       (2000:5A)

  CUSTOM OUTPUT MODELS

· 100mA, 1A, 1V, 2V and others

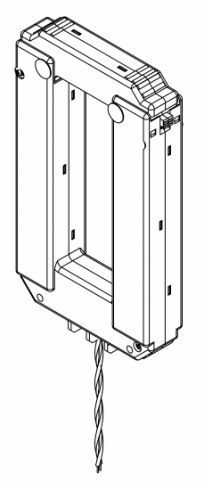

  DIMENSIONS [mm]

Accessory - Plastic Rivets
