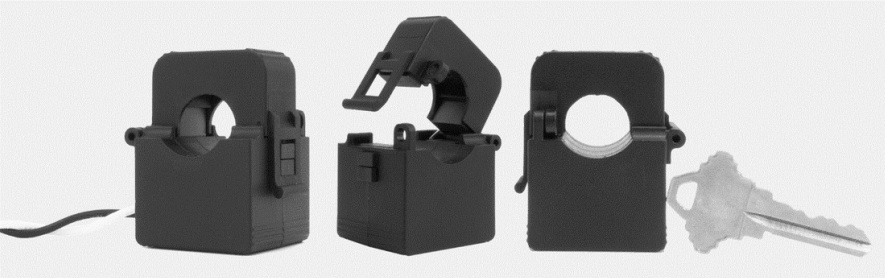

WC1 SERIES

  FEATURES

· 0.72” x 0.62” [18.3mm x 15.7mm] window opening (ID)
· Positive latch for secured installation
· Benchmark EZ-Open swing design
· Rigid housing case with UL 94V-0 plastic
· 6ft [1.83m] 18AWG black/white twisted pair wires
· Keying hole for locking or servicing tag
· Phoenix style and other connectors (optional)

 SPECIFICATIONS

· Standard Input Current  20-100A
· Frequency  40Hz — 400Hz
· Custom Turn-Ratios available
· Standard Accuracy 0.5%
· Approximate weight 0.35Lb [158.8g]
· UL2808, CSA C22.2 61010-1-12
· ANSI C57.13, IEC61010-1 & cETLus
· Listed Component and CE Mark

 STANDARD MODELS

· WC1-030-MV333     (30A/0.333V)
· WC1-060-MV333     (60A/0.333V)
· WC1-100-MV333     (100A/0.333V)

  CUSTOM OUTPUT MODELS

· 100mA, 1V, 2V and others

  DIMENSIONS [mm]

Accessory - Cable Tie Wrap
