WC0 SERIES

  FEATURES

· 0.45” x 0.47” [11.43mm x 11.94mm] window opening (ID)
· Positive latch for secured installation
· Benchmark EZ-Open swing design
· Rigid housing case with UL 94V-0 plastic
· 6ft [1.83m] 22AWG black/white twisted pair wires
· Keying hole for locking or servicing tag
· Phoenix style and other connectors (optional)

 SPECIFICATIONS

· Standard Input Current  10-60A
· Frequency  40Hz — 400Hz
· Custom Turn-Ratios available
· Standard Accuracy 0.3%
· Approximate weight 0.12Lb [54.43g]
· UL2808 & CSA C22.2 61010-1-12
· ANSI C57.13, IEC61010-1 & cETLus
· Listed Component and CE Mark

 STANDARD MODELS

· WC0-10-MV333     (10A/0.333V)
· WC0-20-MV333     (20A/0.333V)
· WC0-30-MV333     (30A/0.333V)

  CUSTOM OUTPUT MODELS

· 100mA, 1V, 2V and others

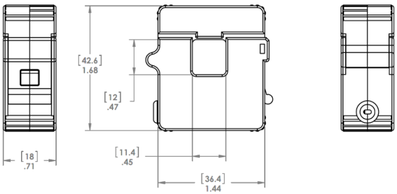

  DIMENSIONS [mm]

Accessory - Cable Tie Wrap
