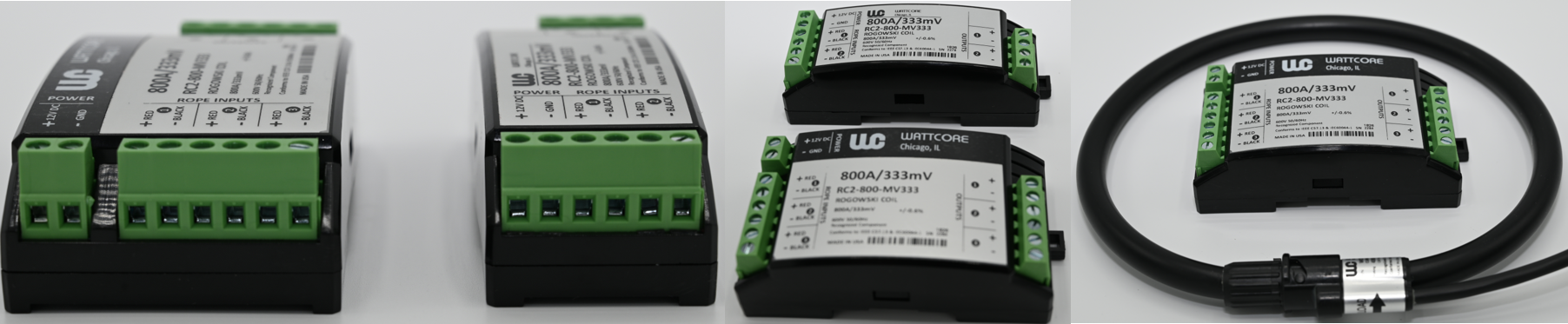

WCV INTEGRATOR DIN MODULES (2&3 Phases)

  FEATURES

· Low profile custom design DIN style mount enclosures
· Available in 2 DIN enclosure sizes
· Housing case with UL 94V-0 plastic
· Pre-configured at factory to work with all WCR flex coils
· No calibrations or DIP-switch setups required
· Phoenix style terminal blocks

 SPECIFICATIONS

· Standard Input  70mV AC
· Frequency  50/60Hz
· Standard Accuracy 0.5%
· Approx weight varied by model
· UL2808 & CSA C22.2 61010-1-12
· ANSI C57.13, IEC61010-1 & cETLus
· Listed Component and CE Mark

 STANDARD MODELS

· WCV1-70MV-MV333                (70mV/0.333V)
· WCV2-70MV-MV333                (70mV/0.333V)
· WCV3-70MV-MV333                (70mV/0.333V)

  CUSTOM INPUT/OUTPUT AVAILABLE

  DIMENSIONS [mm]
