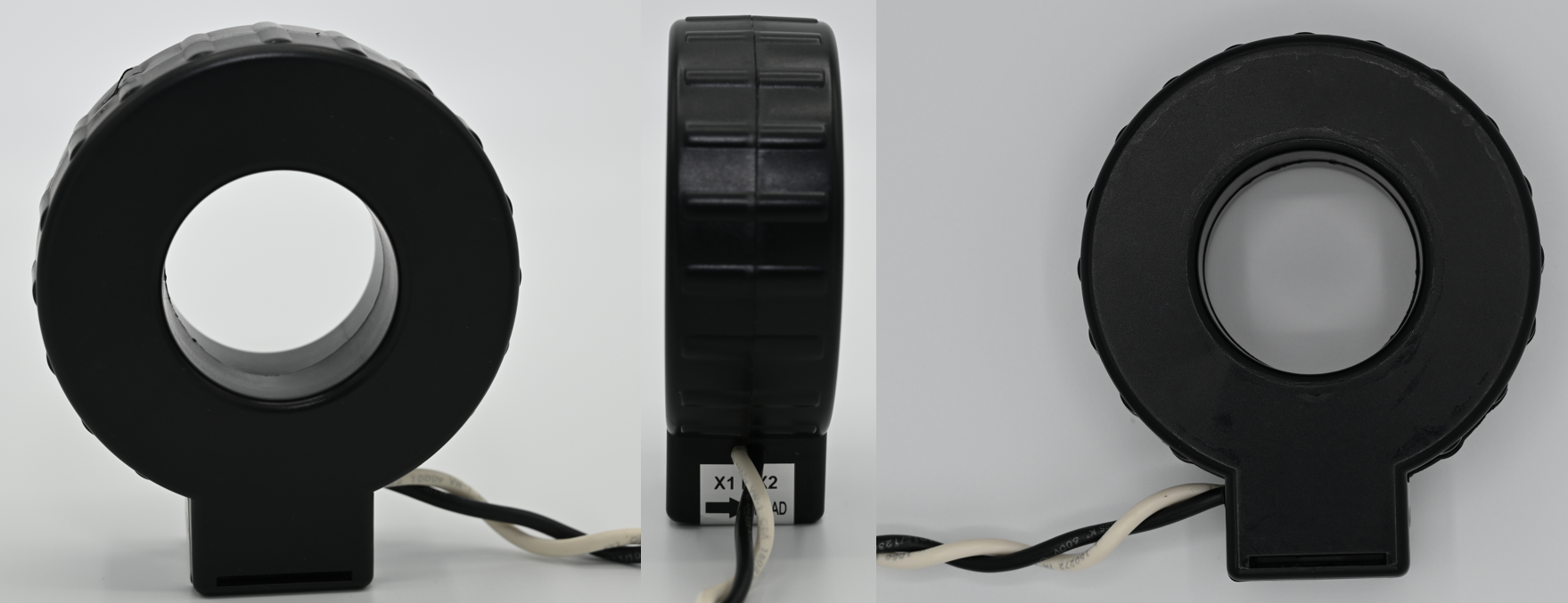

WCS150 SERIES

  FEATURES

· Ø1.5” [Ø38.1mm] window opening (ID)
· Slot provision for mounting CT
· Ultrasonically sealed housing preventing dust ingestion
· Rigid housing case with UL 94V-0 plastic
· 6ft [1.8m] 18AWG black/white twisted pair wires
· Lozenges on housing to provide glove-friendly grip
· Phoenix style and other connectors (optional)

 SPECIFICATIONS

· Standard Input Current  100-600A
· Frequency  40Hz — 400Hz
· Custom Turn-Ratios available
· Standard Accuracy 0.2%
· Approximate weight 0.55Lb [249.5g]
· UL2808 & CSA C22.2 61010-1-12
· ANSI C57.13, IEC61010-1 & cETLus
· Listed Component and CE Mark

 STANDARD MODELS

· WCS150-200-MV333            (200A/0.333V)
· WCS150-400-MV333            (400A/0.333V)
· WCS150-600-MV333            (600A/0.333V)

  CUSTOM OUTPUT MODELS

· 100mA, 1V, 2V and others

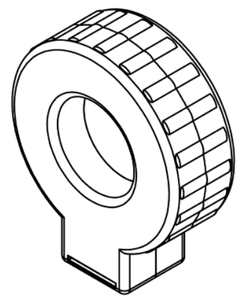

  DIMENSIONS [mm]
