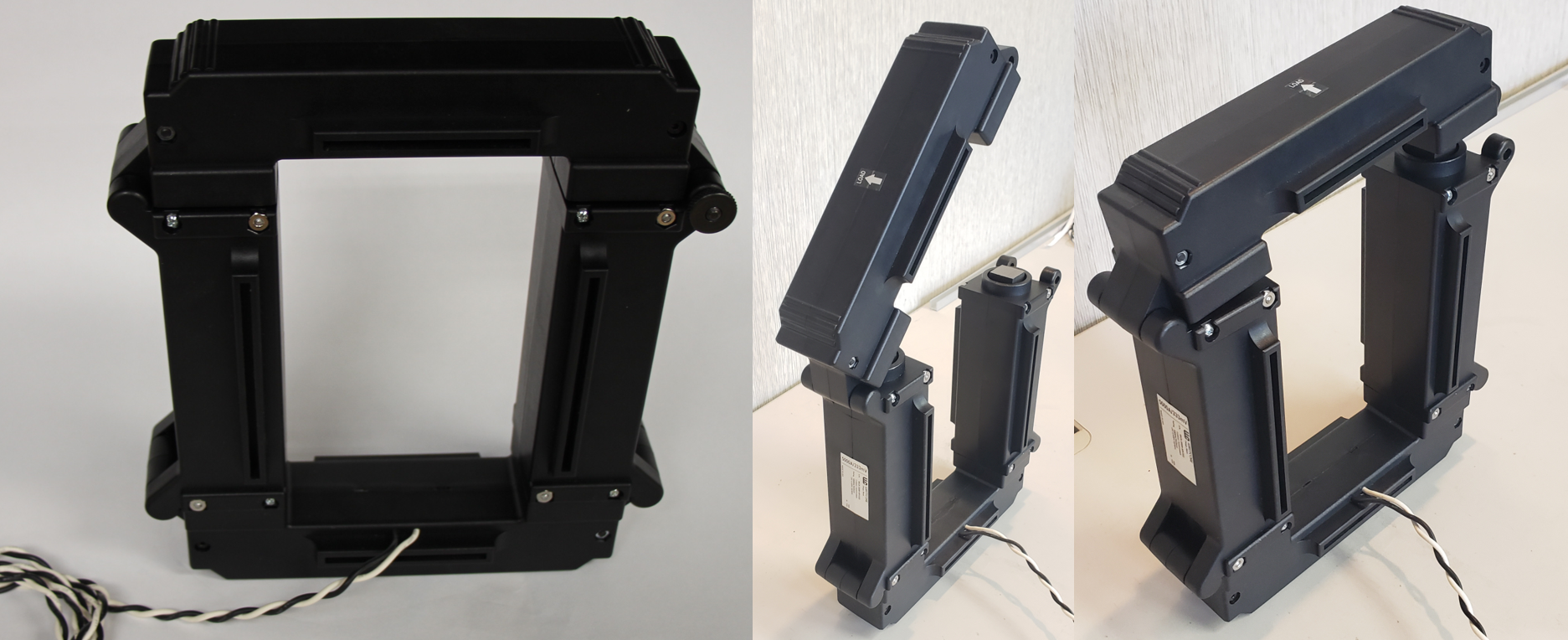

WC8 SERIES

---

  FEATURES

· 4.38” x 7.72” [111.13mm x 196.19mm] window ID
· Positive latch for secured installation
· Benchmark EZ-open swing design
· Rigid housing case with UL 94V-0 plastic
· 6ft [1.83m] 16AWG black/white twisted pair wire leads
· Wire leads—UL1015 105ºC 600V
· Keying hole for locking or servicing tag
· Phoenix style and other connectors (optional)

 SPECIFICATIONS

· Standard Input Current  2000-5000A
· Frequency  40Hz — 400Hz
· Custom Turn-Ratios available
· Standard Accuracy 0.5%
· Approximate weight 10.0Lbs [4.54Kg]
· ANSI C57.13, IEC61010-1 & cETLus
· UL2808 and CSA C22.2 61010-1-12
· Listed Component and CE Mark

 STANDARD MODELS

· WC8-3000-MV333       (3000A/0.333V)
· WC8-4000-MV333       (4000A/0.333V)
· WC8-5000-MV333       (5000A/0.333V)
· WC8-3000-RA005       (3000:5A)
· WC8-4000-RA005       (4000:5A)
· WC8-5000-RA005       (5000:5A)

  CUSTOM OUTPUT MODELS

· 100mA, 1A, 1V, 2V and others

WC8 mV Datasheet

WC8 5A Datasheet

---

  DIMENSIONS [mm]

Knurl Metal Knob for Secured Lock

---
